YGZPF
- 【说明】产品结构：• 导体：多股镀锡铜绞合软导体• 绝缘：FEP铁氟龙• 屏蔽：镀锡屏蔽编织• 护套：硅橡胶技术数据：• 温度范围：-60℃~+200℃• 额定电压：300V/500V• 外径容差：±0.1mm应用范围：• 适用于家用电器，照明灯具
- 【分类】铁氟龙多芯高温(屏蔽)线
- 【热线】158-2157-0899 倪经理
实力工厂
专业团队
质量保障
合作共赢
- 上一个：YGZF
- 下一个：尾篇
产品详情

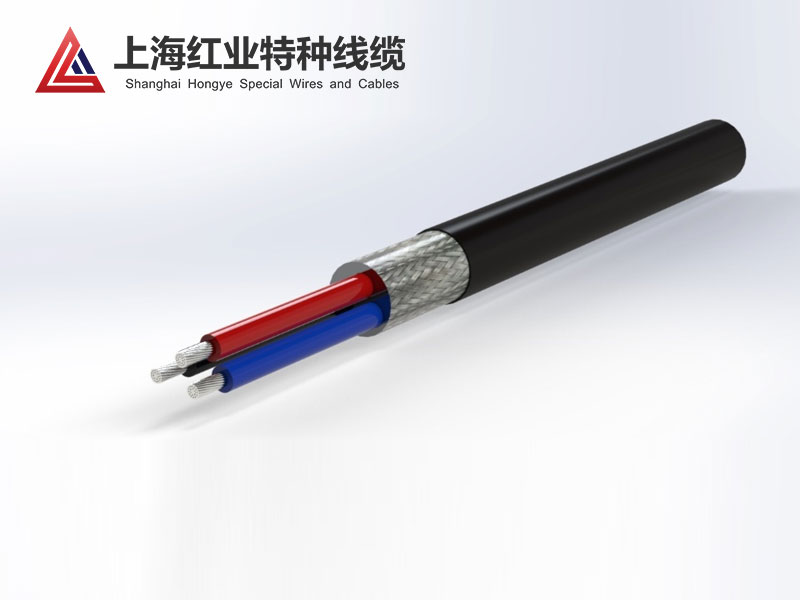

产品结构：
• 导体：多股镀锡铜绞合软导体
• 绝缘：FEP铁氟龙
• 屏蔽：镀锡屏蔽编织
• 护套：硅橡胶
技术数据：
• 温度范围：-60℃~+200℃
• 额定电压：300V/500V
• 外径容差：±0.1mm
应用范围：
• 适用于家用电器，照明灯具，小电机，温度传感器，电磁线圈，汽车内部连接线，电子电器等
| 芯数×截面 （mm2） | 导体结构根数/线径 （mm） | 绝缘厚度 （mm） | 绝缘外径 （mm） | 护套厚度 （mm） | 平均外径 (mm） | 20 ℃时导体直流电阻 （Ω/km） |
| 1×0.4 | 48/0.10 | 0.5 | 1.8 | 0.8 | 4 | 53.1 |
| 1×0.75 | 19/0.23 | 0.6 | 2.35 | 0.65 | 4.1 | 24.6 |
| 1×1.5 | 19/0.32 | 0.6 | 2.8 | 1.2 | 5.8 | 12.7 |
| 3×0.08 | 7/0.12 | 0.2 | 0.76 | 0.7 | 3.4 | 245 |
| 4×0.08 | 7/0.12 | 0.2 | 0.76 | 0.8 | 4 | 245 |
| 5×0.08 | 7/0.12 | 0.2 | 0.76 | 0.8 | 4.2 | 245 |
| 6×0.08 | 7/0.12 | 0.2 | 0.76 | 1.1 | 5.2 | 245 |
| 2×0.12 | 7/0.15 | 0.25 | 0.95 | 0.7 | 3.9 | 163 |
| 3×0.12 | 7/0.15 | 0.25 | 0.95 | 0.7 | 4 | 163 |
| 4×0.15 | 7/0.15 | 0.25 | 0.95 | 1 | 4.8 | 163 |
| 5×0.12 | 7/0.15 | 0.25 | 0.95 | 0.9 | 4.9 | 163 |
| 6×0.12 | 7/0.15 | 0.25 | 0.95 | 1 | 5.4 | 163 |
| 7×0.12 | 7/0.15 | 0.25 | 0.95 | 1 | 5.5 | 163 |
| 2×0.2 | 7/0.20 | 0.25 | 1.1 | 0.8 | 4.3 | 90.4 |
| 3×0.2 | 7/0.20 | 0.25 | 1.1 | 0.8 | 4.5 | 90.4 |
| 4×0.2 | 7/0.20 | 0.25 | 1.1 | 1 | 5.2 | 90.4 |
| 5×0.2 | 7/0.20 | 0.25 | 1.1 | 1 | 5.5 | 90.4 |
| 6×0.2 | 7/0.20 | 0.25 | 1.1 | 1.2 | 6.2 | 90.4 |
| 7×0.2 | 7/0.20 | 0.25 | 1.1 | 1.2 | 6.2 | 90.4 |
| 8×0.2 | 7/0.20 | 0.25 | 1.1 | 1.2 | 6.5 | 90.4 |
| 10×0.2 | 7/0.20 | 0.25 | 1.1 | 1.4 | 7.6 | 90.4 |
| 16×0.2 | 7/0.20 | 0.25 | 1.1 | 1.5 | 8.6 | 90.4 |
| 19×0.2 | 7/0.20 | 0.25 | 1.1 | 1.5 | 9 | 90.4 |
| 2×0.35 | 19/0.16 | 0.25 | 1.3 | 1 | 5 | 53.1 |
| 3*0.35 | 19/0.16 | 0.25 | 1.3 | 1 | 5.4 | 53.1 |
| 4×0.35 | 19/0.16 | 0.25 | 1.3 | 1.2 | 6.2 | 53.1 |
| 5×0.35 | 19/0.16 | 0.25 | 1.3 | 1.2 | 6.5 | 53.1 |
| 6×0.35 | 19/0.16 | 0.25 | 1.3 | 1.2 | 7 | 53.1 |
| 7×0.35 | 19/0.16 | 0.25 | 1.3 | 1.2 | 7 | 53.1 |
| 8×0.35 | 19/0.16 | 0.25 | 1.3 | 1.4 | 7.8 | 53.1 |
| 2×0.5 | 19/0.18 | 0.25 | 1.4 | 1 | 5.2 | 40.1 |
| 3×0.5 | 19/0.18 | 0.25 | 1.4 | 1 | 5.5 | 40.1 |
| 4×0.5 | 19/0.18 | 0.25 | 1.4 | 1.1 | 6.1 | 40.1 |
| 5×0.5 | 19/0.18 | 0.25 | 1.4 | 1.2 | 6.8 | 40.1 |
| 6×0.5 | 19/0.18 | 0.25 | 1.4 | 1.3 | 7.2 | 40.1 |
| 7×0.5 | 19/0.18 | 0.25 | 1.4 | 1.3 | 7.4 | 40.1 |
| 2×0.75 | 19/0.23 | 0.25 | 1.7 | 1.2 | 6.3 | 24.6 |
| 3×0.75 | 19/0.23 | 0.25 | 1.7 | 1.4 | 7 | 24.6 |
| 4×0.75 | 19/0.23 | 0.25 | 1.7 | 1.6 | 8 | 24.6 |
| 5×0.75 | 19/0.23 | 0.25 | 1.7 | 1.5 | 8.2 | 24.6 |
| 6×0.75 | 19/0.23 | 0.25 | 1.7 | 1.5 | 8.6 | 24.6 |
| 7×0.75 | 19/0.23 | 0.25 | 1.7 | 1.6 | 8.8 | 24.6 |
| 2×1 | 19/0.26 | 0.25 | 1.8 | 1.2 | 6.6 | 20.4 |
| 3×1 | 19/0.26 | 0.25 | 1.8 | 1.4 | 7.3 | 20.4 |
| 4×1 | 19/0.26 | 0.25 | 1.8 | 1.4 | 7.8 | 20.4 |
| 7×1 | 19/0.26 | 0.25 | 1.8 | 1.6 | 8.6 | 20.4 |
| 2×1.5 | 19/0.32 | 0.3 | 2.25 | 1.3 | 7.7 | 12.7 |
| 3×1.5 | 19/0.32 | 0.3 | 2.25 | 1.4 | 8.2 | 12.7 |
| 4×1.5 | 19/0.32 | 0.3 | 2.25 | 1.4 | 8.5 | 12.7 |
| 7×1.5 | 19/0.32 | 0.3 | 2.25 | 1.6 | 10.5 | 12.7 |
| 2×2.5 | 19/0.41 | 0.4 | 2.8 | 1.5 | 9.2 | 7.43 |
| 3×2.5 | 19/0.41 | 0.4 | 2.8 | 1.5 | 9.6 | 7.43 |
| 4×2.5 | 19/0.41 | 0.4 | 2.8 | 1.6 | 10.6 | 7.43 |
| 7×2.5 | 19/0.41 | 0.4 | 2.8 | 1.8 | 12.6 | 7.43 |
